Acid Cooling Air Cooled Industrial Chilling Equipment 50 Ton Chiller

Characteristic

Type: Air-cooled
Place of Origin:Shandong, China
Brand Name:MGREENBELT
Voltage:3PH~220V/380/415V~50HZ/60HZ
Dimension(L*W*H):4050*1950*2150mm
Weight:3000 KG
Certification: CE, UL, ISO9001
Warranty:1 Year
Power:55 kw
Working Temperature Range:+7 degree C ~+35 degree C
Refrigerant:R134a/R407c/R410a/R22
Cooling Capacity:203 Kw, 57.7 Ton
Application:Industrial Cooling Solutions
Compressor type:Semi-closed Screw Type
Evaporator style:Shell and Tube Type
Pump:Centrifugal Pump

24/7 Online Support

86-17686681005

Description

Name
Acid Cooling Air Cooled Industrial Chilling Equipment 50 Ton Chiller
Industry Applation
Any industry system cooling, such as plastic injection, molding, extruder, Brewery/Winery, Chemical Industry, Concrete / Cement, Food Industry, beverage and son on.
Manufacturer Address
Company Name: Shandong Mgreenbelt Machinery Co., Ltd. Operational Address: West Zone, Longmen Economic Development Zone, Pingyuan
County, Dezhou, Shandong, China
Brand name
MGREENBELT
You may want to know?
1.We are factory.
2.We supply good quality and competitive price.
3.We supply installation support service.
4.We promise lifetime guarantee.


Acid Cooling Air Cooled Industrial Chilling Equipment 50 Ton Chiller

Air Cooled Screw Chiller Air-cooled screw chiller capacity 20- 150Ton High quality branded screw compressor Energy efficiency air-cooled type condenser Temperature control from -15℃to 35℃ Dry shell and tube evaporator No need to install a cooling tower Easy installation&Operation and maintenance

Parameter

Air Cooled Screw Chiller Normally Temperature Series( Single System)

Model

MG-80C

MG-110C

MG-140C

MG-155C

MG-200C

MG-260C

MG-300C

MG-420C

MG-520C

MG-600C

Cooling Capacity

USRT

22.2

31.0

40.4

43.5

57.7

72.2

86.7

120.0

148.7

170.6

Kcal/h

67080

93740

122120

131580

174580

218440

262300

362920

449780

516000

KW

78

109

142

153

203

254

305

422

523

600

Power

3PH-380V-50Hz

Refrigerant

Type

R22/R407C

Control

Thermostatic expansion valve

Comperssor

Type

semi-closed screw type

kw Power

28

37

46

51

66

79

94

124

160

182

Start

Y-

Capacity

33%-66%-100%

25%-50%-75%-100%

Evaporator

Type

High efficiency copper tube shell and tube type

m³/h Flow

13

19

24

26

35

44

52

72

90

103

Inlet/outlet

DN65

DN65

DN80

DN80

DN80

DN80

DN80

DN100

DN125

DN150

Condenser

Type

High efficiency hydrophilic aluminum foll finned type

m³/h Flow

30000

40000

50000

60000

80000

100000

120000

160000

200000

240000

Protection System

Compressor overheat protection, high/low pressure protection,phase missing/sequence protection, flow rate protection, anti-frozen protection.

Dimension

L(mm)

2700

2450

2300

3300

4050

4050

4960

4680

5680

6680

W(mm)

1120

1400

1860

1950

1950

1950

1950

2250

2250

2250

H(mm)

1800

2050

1800

2000

2000

2150

2150

2460

2460

2460

wight

kg

1800

1900

2300

2480

3000

3100

3600

5000

6000

6800

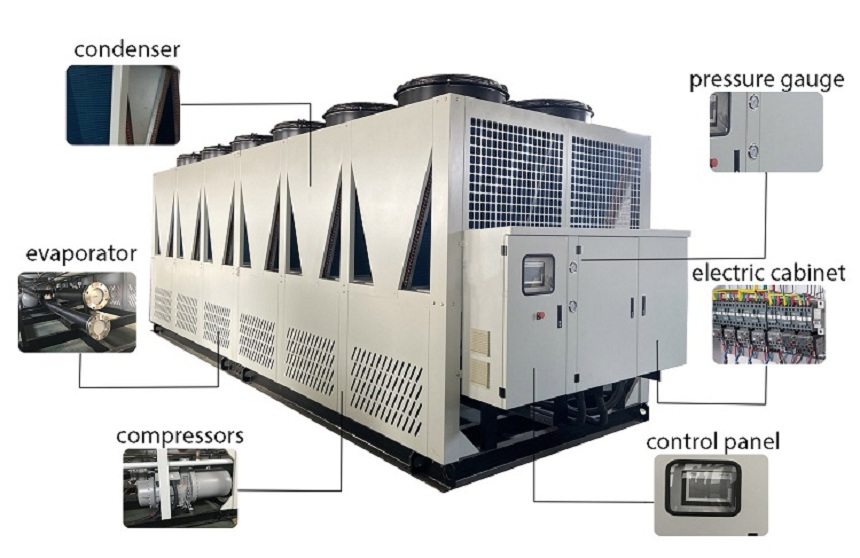

Details

Components description

Brand

Compressor

BITZER/HANBELL

Evaporator

MGREENBELT

Condenser

MGREENBELT

Thermal expansion valve

EMERSON/DANFOSS

Control Panel

PUNP

Drier Filter

EMERSON/DANFOSS

Electric Components

SCHNEIDER/LS

Compressor features:
New screw type compressor with 20%-30% higher in efficiency.
Cooling capacity control available at four steps (100%-75%-50%-25%),or no steps control system.
High efficiency, low noise and vibration, easy to install.
Environmental protection refrigerant R134a, R407c, R404a available.

Control operation system:
SIEMENS PLC program control system, human-computer interface with big LED touch panel, running state displaying in multi-language, and self-diagnosis for easy operation and supervision.
Extended industrial interface, convenient for being computer monitor via network.

Completely safety protection function:
Multi-safety protection by high and low pressure, compressor overheating, overloading, over temperature, flow switch, phase sequence, phase-missing, exhaust overheating and anti-freezing.
