100 HP air cooling industrial plastic extrusion chillers supplier
1. Air Cooled Scroll Chiller : cooling capacity range from 1 ton to 35 tons;
2. Water Cooled Scroll Chiller : cooling capacity range from 1 ton to 40 tons;
3. Air Cooled Screw Chiller : cooling capacity range from 20 tons to 150 tons;
4. Water Cooled Screw Chiller :cooling capacity range from 25 ton to 400 tons;
24/7 Online Support
86-17686681005
Description

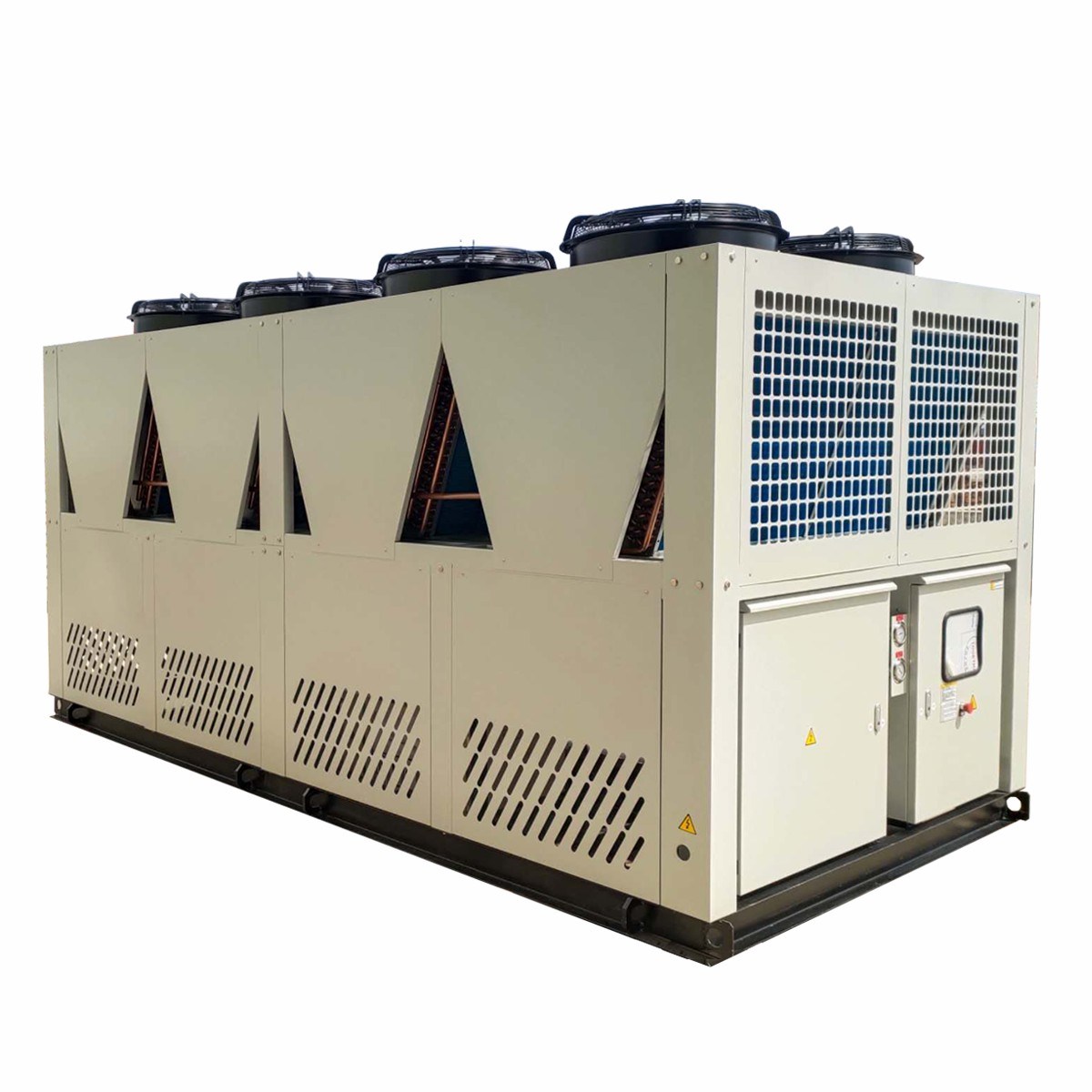

100 HP air cooling industrial plastic extrusion chillers supplier
Perfomance Advantage
Adopt the top row of suction type finned radiator,low noise fan motor,strong air cooling and high efficiency heat exchanger.
Adopt the metal antirust type machine box which can suitable for waterproof which can work in outdoor.
Adopt micro-computer cotroller,display the temperature,protect,fault,code and etc to the control panel,easy operate.
Product Introduction

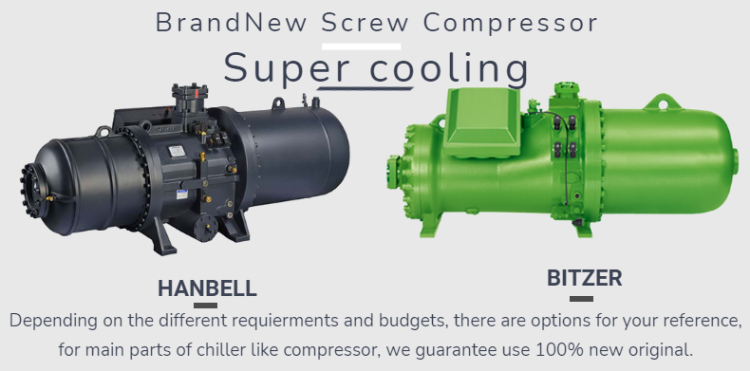

Adopts world famous brand semi-hermetic screw compressor.With excellent eficency,energy efient,stable and quiet running,super cooling

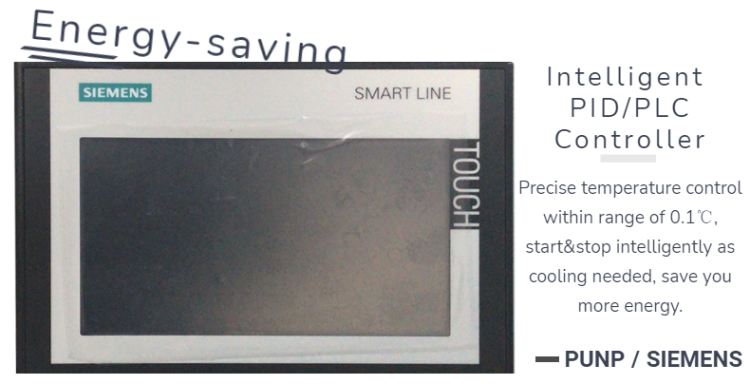

Micro programming Control System.Industrial PLC centralized control combined with compressor capacity control system,built-in full intelligent monitoring and protection including thermal motor temperature monitoring, phase sequence monitonng, manua reset lock-out, oil temperature sensor.

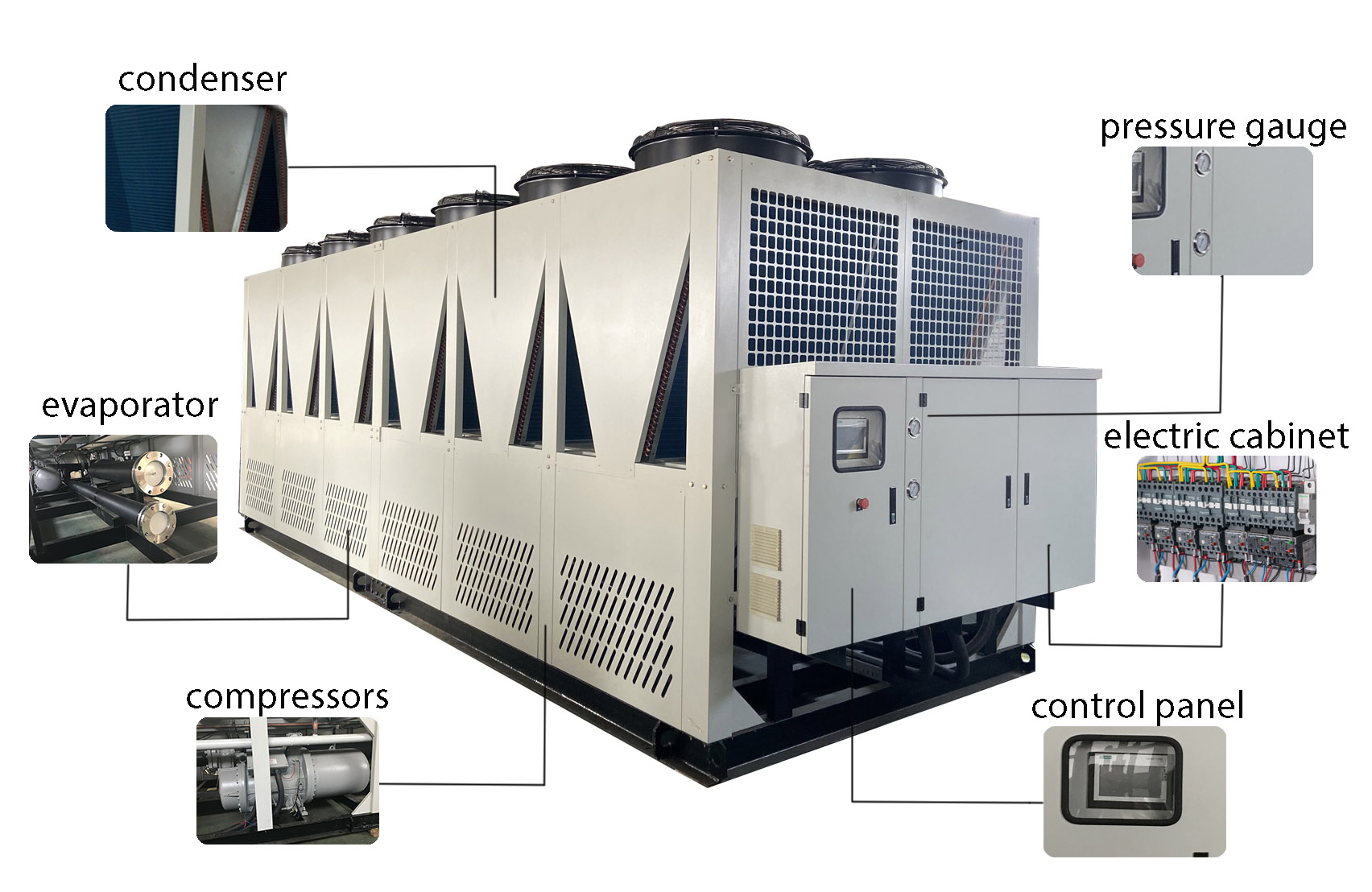

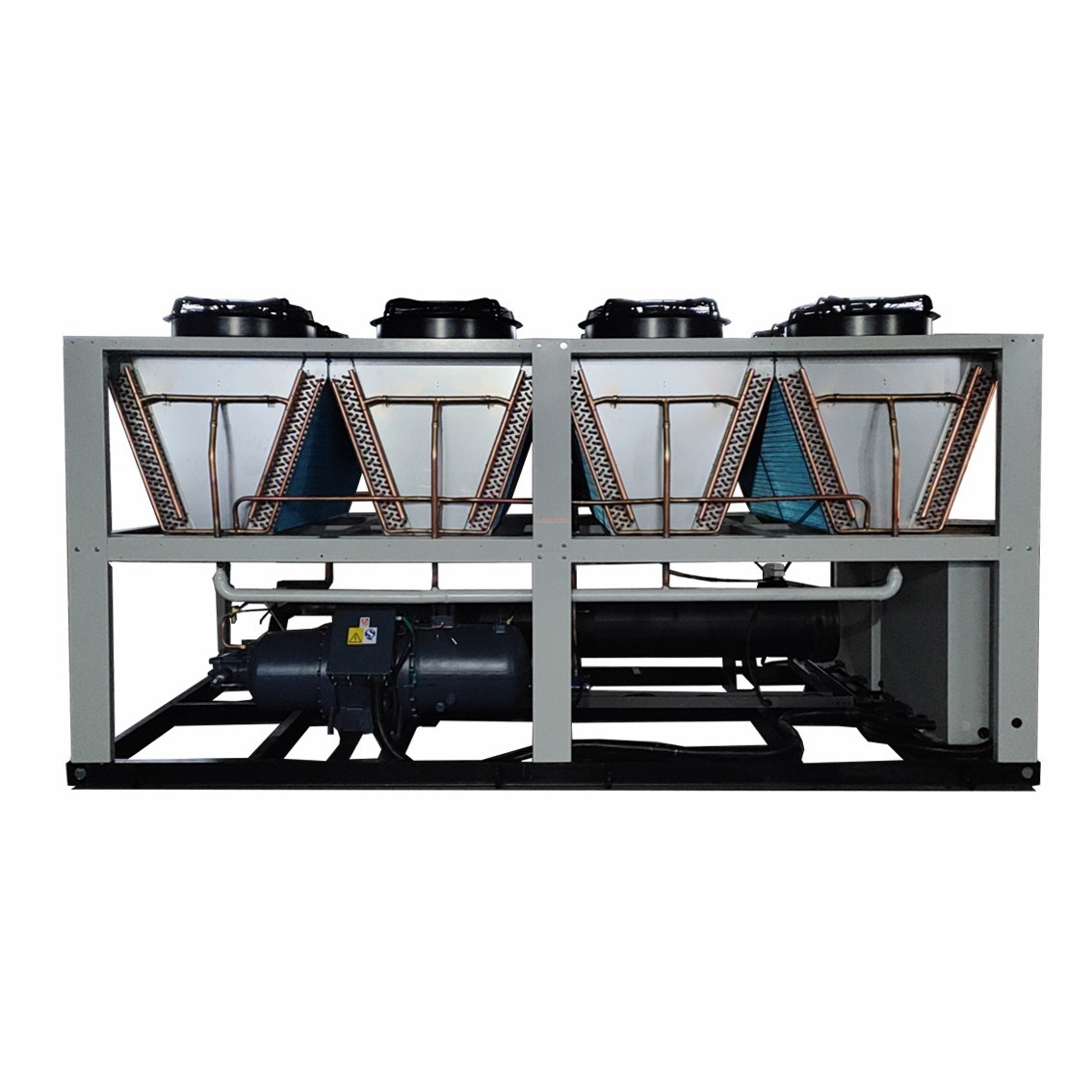

V shape aluminum fin type condenser, assuring adequate heat exchanging area within smaller unit size.High effcient evaporator with internal thread copper tube.Large air volume axial fan with metal blades.
MGREENBELT has exported various models of air-cooled screw chillers cooling capacity from 50Ton, 60Ton, 85Ton,100Ton,120Ton, 180Ton,200Ton, to 550Ton the Philippines, Australia, New Zealand, Malaysia, Singapore, Indonesia, Chile, Mexico, Costa Rica, Brazil, Argentina, Colombia, South Africa, Nigeria, Saudi Arabia, Dubai, Spain, Italy, etc.
As a leader of an air-cooled screw chiller supplier, MGREENBELT can provide not only standard configuration air-cooled screw chillers but some other customized air-cooled chillers.
If you are searching for high-quality air cooled screw chiller to support your business?
MGREENBELT is your best choice in this filed.
Please contact MGREENBELT sales to get the best water cooling solution of your air-cooled screw chiller.

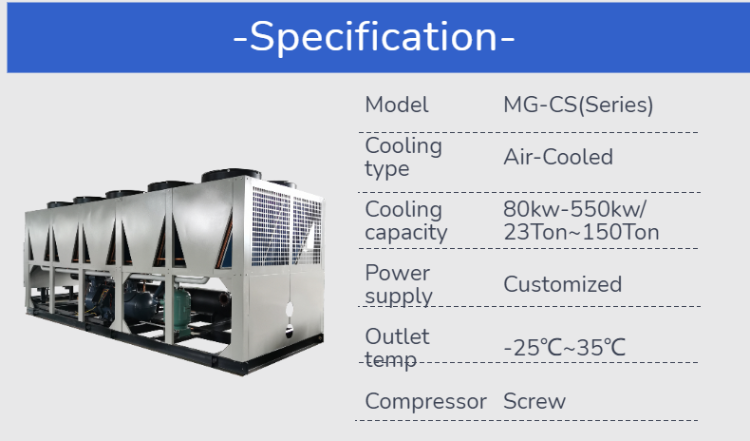

Parameter
|
Air Cooled Screw Chiller Normally Temperature Series( Single System) |
|||||||||||
|
Model |
MG-80C |
MG-110C |
MG-140C |
MG-155C |
MG-200C |
MG-260C |
MG-300C |
MG-420C |
MG-520C |
MG-600C |
|
|
Cooling Capacity |
USRT |
22.2 |
31.0 |
40.4 |
43.5 |
57.7 |
72.2 |
86.7 |
120.0 |
148.7 |
170.6 |
|
Kcal/h |
67080 |
93740 |
122120 |
131580 |
174580 |
218440 |
262300 |
362920 |
449780 |
516000 |
|
|
KW |
78 |
109 |
142 |
153 |
203 |
254 |
305 |
422 |
523 |
600 |
|
|
Power |
3PH-380V-50Hz |
||||||||||
|
Refrigerant |
Type |
R22/R407C |
|||||||||
|
Control |
Thermostatic expansion valve |
||||||||||
|
Comperssor |
Type |
semi-closed screw type |
|||||||||
|
kw Power |
28 |
37 |
46 |
51 |
66 |
79 |
94 |
124 |
160 |
182 |
|
|
Start |
Y-△ |
||||||||||
|
Capacity |
33%-66%-100% |
25%-50%-75%-100% |
|||||||||
|
Evaporator |
Type |
High efficiency copper tube shell and tube type |
|||||||||
|
m³/h Flow |
13 |
19 |
24 |
26 |
35 |
44 |
52 |
72 |
90 |
103 |
|
|
Inlet/outlet |
DN65 |
DN65 |
DN80 |
DN80 |
DN80 |
DN80 |
DN80 |
DN100 |
DN125 |
DN150 |
|
|
Condenser |
Type |
High efficiency hydrophilic aluminum foll finned type |
|||||||||
|
m³/h Flow |
30000 |
40000 |
50000 |
60000 |
80000 |
100000 |
120000 |
160000 |
200000 |
240000 |
|
|
Protection System |
Compressor overheat protection, high/low pressure protection,phase missing/sequence protection, flow rate protection, anti-frozen protection. |
||||||||||
|
Dimension |
L(mm) |
2700 |
2450 |
2300 |
3300 |
4050 |
4050 |
4960 |
4680 |
5680 |
6680 |
|
W(mm) |
1120 |
1400 |
1860 |
1950 |
1950 |
1950 |
1950 |
2250 |
2250 |
2250 |
|
|
H(mm) |
1800 |
2050 |
1800 |
2000 |
2000 |
2150 |
2150 |
2460 |
2460 |
2460 |
|
|
wight |
kg |
1800 |
1900 |
2300 |
2480 |
3000 |
3100 |
3600 |
5000 |
6000 |
6800 |
Details
100 HP air cooling industrial plastic extrusion chillers supplier
Structural
