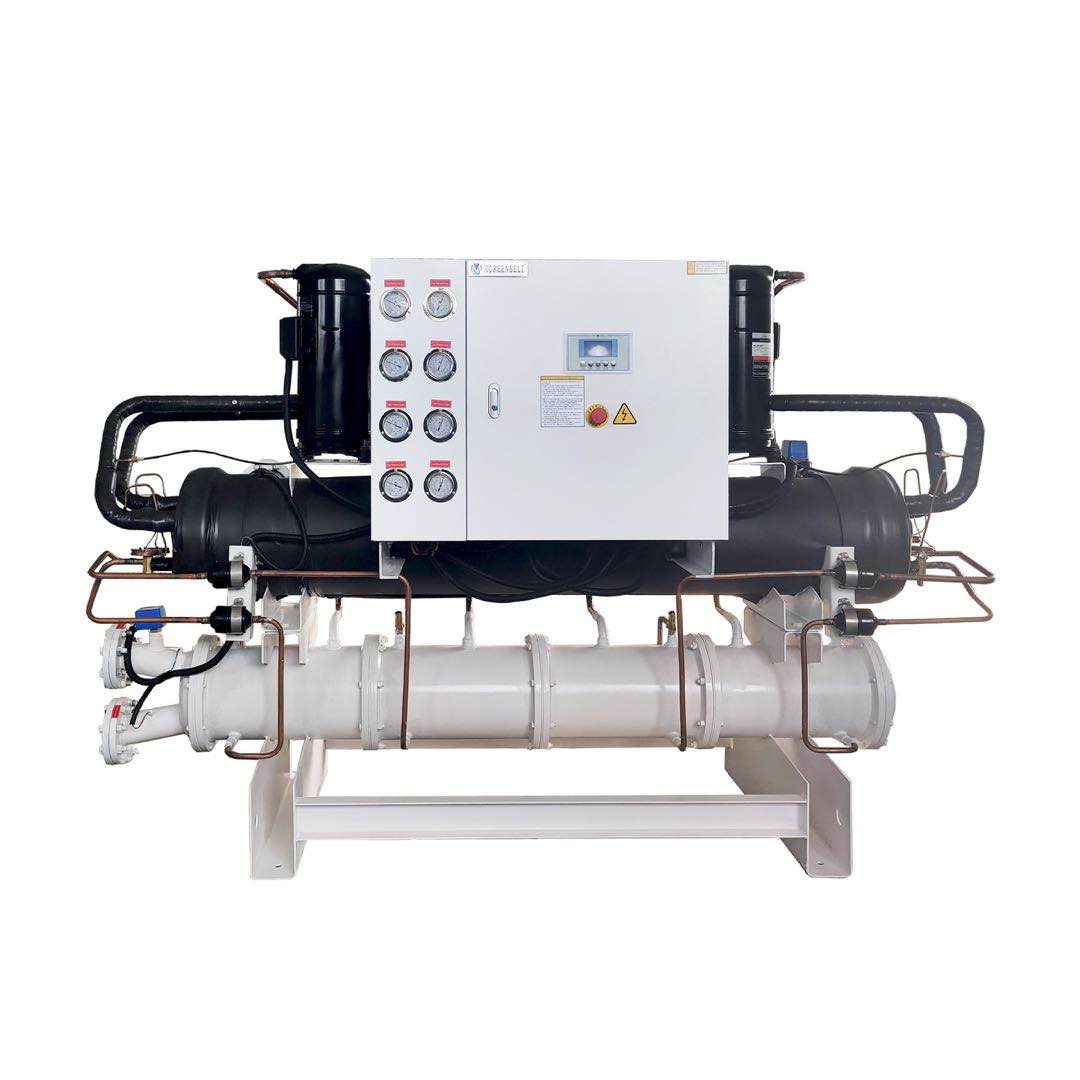

Water Cooled Scrol Industrial Chiller

Characteristic

Water cooled chiller capacity 2 to 285Ton
Temperature control range 7℃ to 35℃
Chilled water flow rate up to 680LPM
High-efficiency evaporator and condenser
Branded scroll or piston compressor available
Full protection devices of water-cooled chiller
Various models and capacities available

24/7 Online Support

0086-17686681009

Description
Scroll Water Chiller Equipment Specifications


1. Outlet temperature range: +7 C ~+35 deg C
2. High cooling efficient;
3.Electric Power saving.
4.Shell and tube heat exchanger
5.Micro-computer intelligent control system; SIEMENS PLC option.
6.Temperature automatic control no need operate by manual.

7. CE, UL, SGS certificate



Parameter

Scroll Type Water Cooled Chiller

Model

MG-30W(D)

MG-40F

MG-50F

MG-60F

Cooling capacity

Kcal/h

79120

103716

121604

180600

kw

92.0

120.6

141.4

209.34

Power

kw

29.35

38.4

44.6

57

Power supply

3 Phase-380V-50Hz

Refrigerant

Type

R404a, R407C, R22

Control

Thermostatic expansion valve

Compressor

Type

Hermetic scroll

kw

27.15

36.2

42.4

47

Evaporator

Type

Shell and tube

m³/h
Water flow

15.77

20.67

24.24

36

L Capacity

450

580

580

750

Pipe diameter of chilled water

DN65

DN65

3 inch

3 inch

Condenser

Type

Shell and tube

m³/h
Water flow

20.43

26.88

31.51

44.1

Pipe diameter of Cooling water

DN65

DN80

DN80

3 inch

Power

2.2

2.2

2.2

4

m Lift

21

21

19

24

Protection System

High/Low Pressure protection, Phase-sequencing Protection, Overload Protection, Overheat Protection, Water flow protection, Anti-frozen protection.

Dimension

mm L

2200

2500

2000

2500

mm W

1160

1460

2000

1000

mm H

1900

2000

1750

1500

Weight

kg

1150

1200

1380

1200

Details

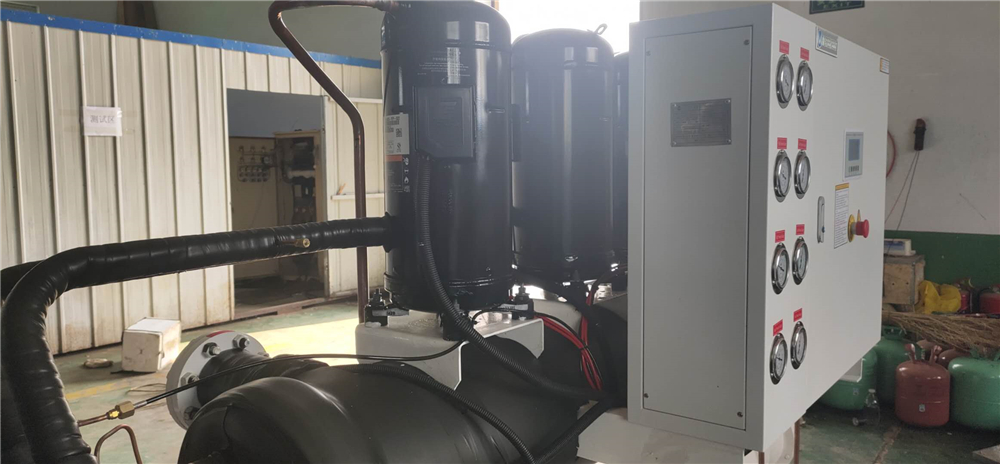

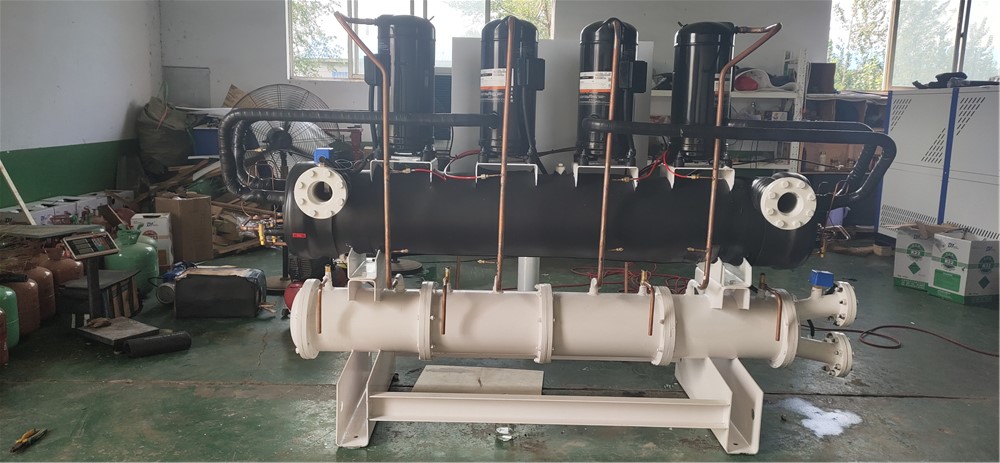

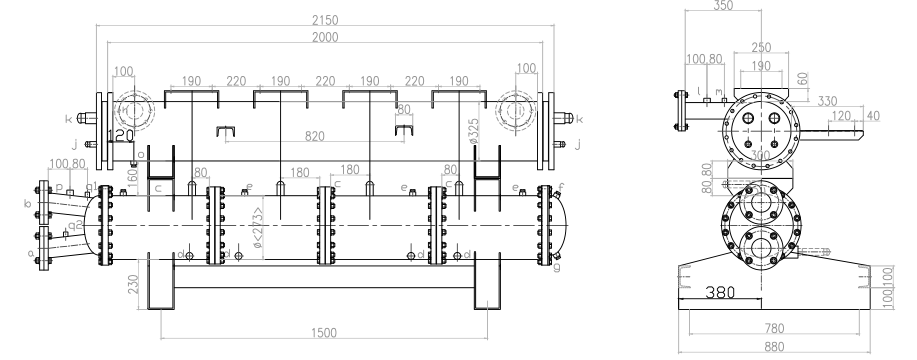

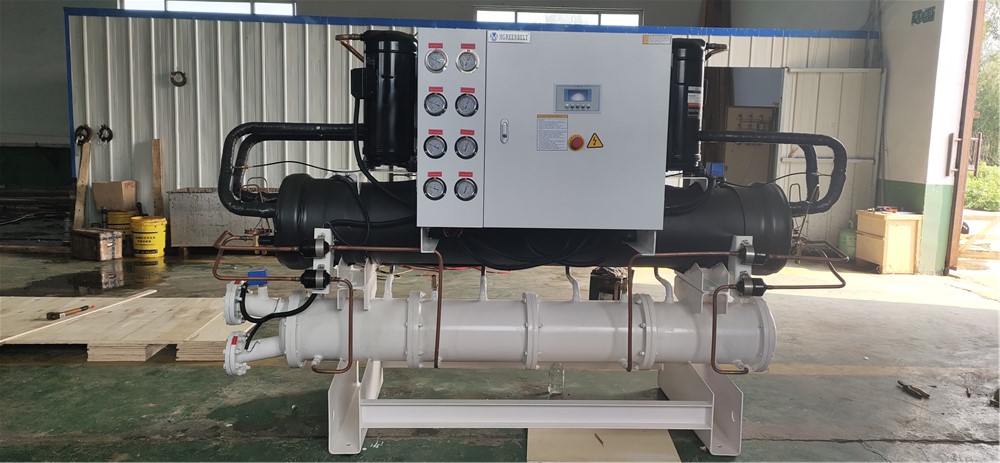

Structural
