20HP 30HP Glycol Chiller For Brewery Air Cooled Low Temperature Glycol Chilling Equipment

Characteristic

Mgreenbelt glycol chiller for brewery, usually working temperature: -5 deg C;

User can choose: Air cooled glycol chiller, and water cooled glycol chiller.

Evaporator: Stainless steel brazed plate heat exchanger
Water flow can according to brewing need.
Panasonic / Copeland hermetic scroll compressor
MGreenbelt is have professional engineer team for brewing industry.
Different model for different fermentation tank need.

24/7 Online Support

86-17686681005

Description

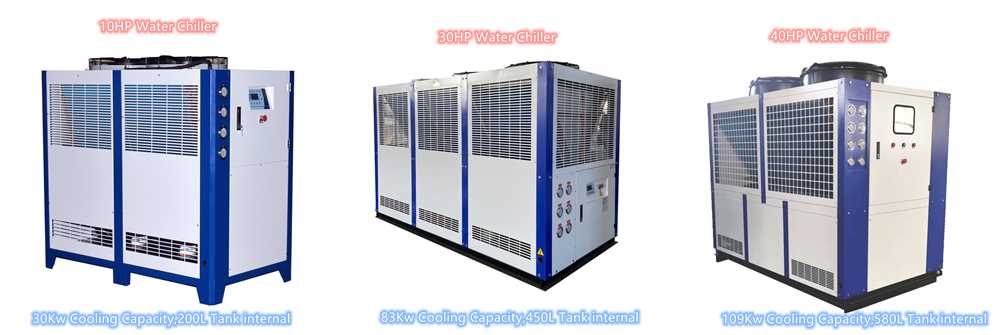

20HP 30HP 15HP Industrial Low Temperature Air Cooled Water Chiller for Brewery

As a professional water chiller manufactuer in China, we can supply kinds of chiller solution according to your different working need, OEM is accept, if this series is not workable for you, please feel free send news to us.

Jinan Mgreenbelt Machinery Co., Ltd. is a leading specialized manufacturer of industrial water chiller, air compressor and auxiliary equipment in Shandong province, China. Mgreenbelt factory is located in Shandong, covering a total area of 34,000 square meters.
Our mission is to provide customers the best products and services through our wide range of equipment, parts, and services. Our goal is to be a one-stop-shop for your water system needs. To deliver on that promise we only carry the highest quality products and services
We have 20 years experience of the designer team, To provide the best service to our customer.
Our products have passed the SGS and CE system certification.
The main production of Industrial Chillers, Screw Chiller, Mold Chiller, Extrusion Chiller, Glycol Chiller, Brewery Chiller, Dairy Chiller, scroll chiller, and etc.
1. Our Main Product:
1). All kinds of Industrial Chiller
2). Water cooled Screw Chiller, Air cooled screw Chiller, Flooded type Screw Chiller, Evaporative Cooled Screw Chiller
3). Water cooled Scroll Chiller, Air cooled Scroll Chiller
4). Low temperature chiller(0ºC to -40ºC)
5). Anti-corrosion Chiller, Explosion-proof Chiller, etc






Parameter

Air Cooled Glycol Water chiller

Model

MG-3CL

MG-5CL

MG-6CL

MG-8CL

MG-10CL

MG-12CL

Cooling capacity

0

kw

6.8

10.5

12.2

16.2

22.8

24.8

-5

kw

5.7

8.9

10.3

13.8

19.3

21

Power

kw

3.45

5.45

6.31

8.22

10.54

12.33

Power input

3PH-380V-50HZ

Refrigerant

Type

R22/R407C

Control

Thermostatic expansion valve( Capillary)

Compressor

Type

Hermetic scroll type

Power

kw

2.84

4.36

5.2

3.5*2

4.4*2

5.2*2

Evaporator

Type

SS Tank with coil or Shell and tube

m³/h
Flow

0

1.29

1.99

2.31

3.07

4.32

4.70

-5

1.17

1.83

2.12

2.84

3.97

4.32

Capacity

L

50

70

70

120

200

200

pipe diameter of chilled water

DN25

DN25

DN25

DN32

DN32

DN32

Condenser

Type

High efficiency hydrophilic aluminum foll finned type

Power

kw

0.19

0.52

0.52

0.24*2

0.46*2

0.46*2

pump

Type

Centrigual water pump

Power

kw

0.37

0.55

0.55

0.55

0.55

0.55

lift

m

24

25

24

20

20

20

Protection System

Compressor overheat protection, high/low pressure protection,phase missing/sequence protection, flow rate protection, anti-frozen protection.


Dimension

L

mm

1100

1200

1200

1400

1560

1560

W

mm

600

600

600

800

850

850

H

mm

1100

1100

1100

1400

1500

1500

Wight

kg

150

200

230

310

450

500

Model

MG-15CL

MG-20CL

MG-25CL

MG-40CL

MG-50CL

Cooling capacity

0

kw

33.4

44.2

50.5

87.7

110.6

-5

kw

28.4

37.6

43

74.5

94

Power

kw

15.84

20.51

23.52

40.18

47.92

Power Supply

3PH-380V-50HZ

Type

R22/R407C

Refrigerant

Control

Thermostatic expansion valve


Compressor

Type

Hermetic scroll type

Power

kw

4.4*3

8.7*2

10.2*2

8.7*4

10.2*4


Evaporator

Type

S

Details

To ensure high quality and good experience to customers, we use the world famous brand of key parts and good material to produce our machines. Pls find the below detailed photoes for further information.

(1).Compressor
Panasonic / Copeland / Danfoss Scroll Compressor, High efficiency and reliability.

(2). Microcomputer Control System
The intelligent control system of microcomputer is precisely controlled, Simple operation, intelligent start and stop, Precision temperature control within 5 to 45 degrees of arbitrary adjustment, LCD display, all kinds of faults at a glance, Monitor ingends in real time, Multiple protection features, The Chinese and English interface sits to switch, To meet the needs of different users, Easy to operate.

(3). Evaporator core corrosion resistance, good thermal conductivity, high temperature, heat exchange performance, non-polluting media (non-toxic), not easy to scale, non-magnetic, not easy to leak. The inner core adopts a high-strength sealing structure, which is sealed well and increases heat exchange performance.

(4).FCNP Pump Industry
FCNP Stainless steel pump. With high lift, large flow, low energy consumption, smooth and reliable operation, high efficiency and lower fault, low vibration noise, long life and other advantages, to ensure that water quality away from corrosion.
Some merchants in order to save costs, will be equipped with poor performance of the water pump, will cause the machine cooling effect is not good, operation is unstable, the chance of repair is high and so on. We use FCNP stainless steel pumps to make the machine more durable and better.

(5). SIEMENS Electrical Systems
Protection system built-in compressor superload protector, circulating water pump superload, system high and low pressure protector, compressor start electronic time delay, German SIEMENS electronic products, with a sound electrical protection system.

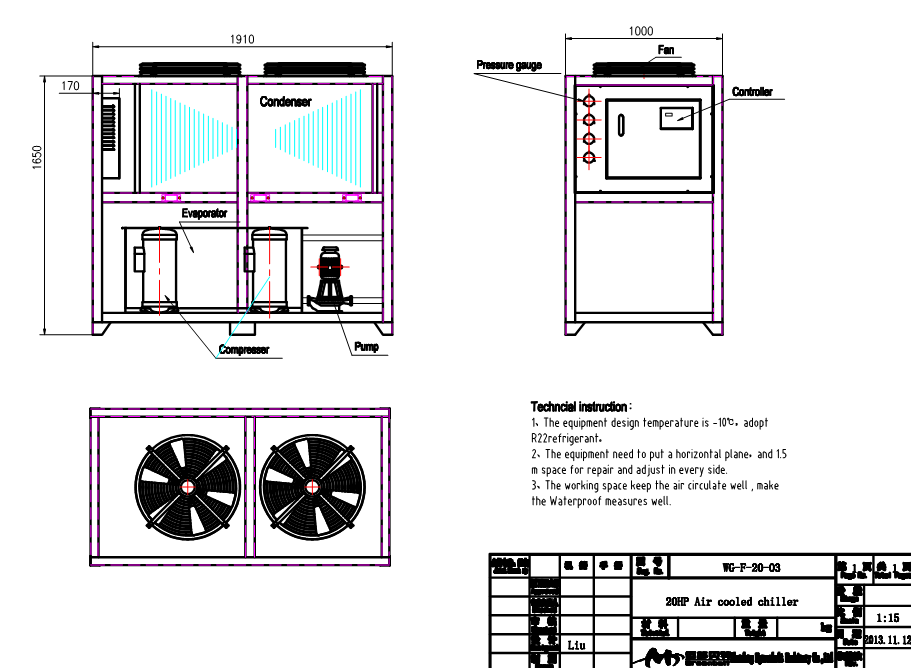

Structural
