10HP 30KW Air Cooled Chiller

Characteristic

Cooling capacity: 28.5 Kw

Outlet temperature: -10C ~ +30C, can be adjusted on the chiller control panel

Electric power supply available: 3PH-208V/220V/380V/415V/460V-50Hz/60Hz

Temperature stability ±0.5 ℃ to ±2 ℃

Built-in SS water tank and water pump

Shell&tube or SS PHE for optional

Easy installation and energy saving

All models and cooling capacity are available

24/7 Online Support

86-17686681005

Description

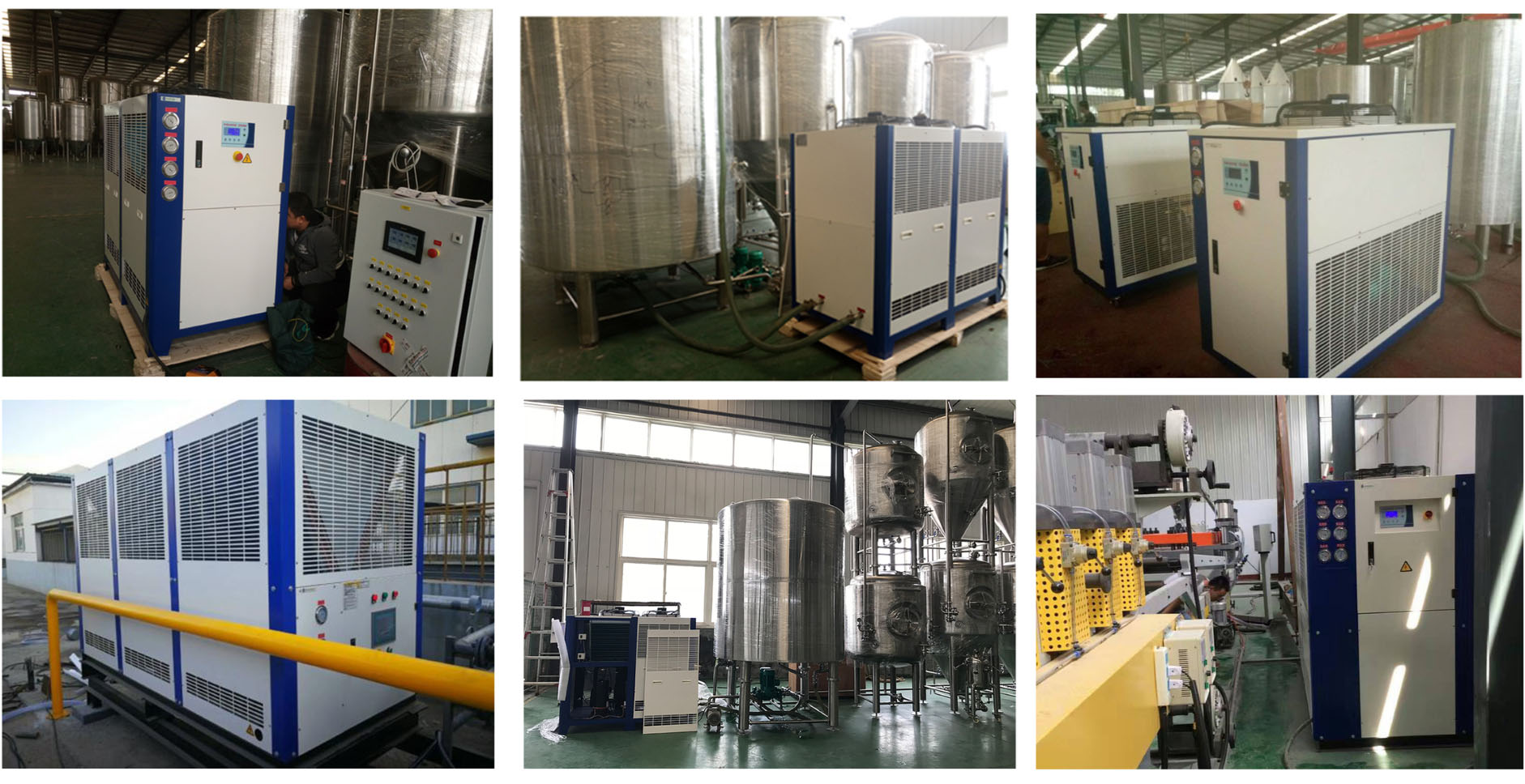

MG air cooled screw chiller widely used in plastic injection, extrusion, plating, mold, hydraulic, chemical, leather, printing, profiles of oxidation, reaction kettle, chemical fiber, vacuum coating, paper making, textile, central air conditioning refrigeration and various aspects of water centralized water supply, especially suitable for the inconvenience for water and the water pipe ground.

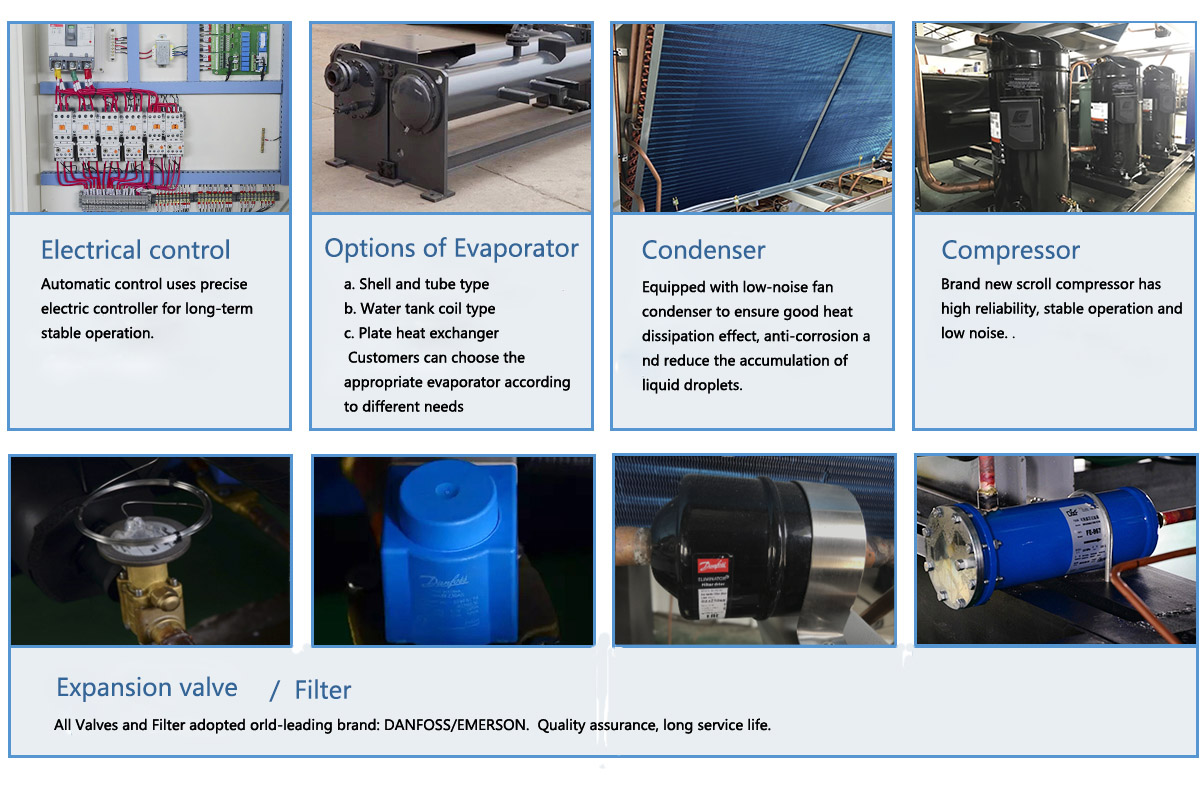

Product features:

1). Brand and durable Scroll type compressor: Copeland, Danfoss, or Panasonic.

2).Three type evaporator support different working circuit.

A.Tank with coil, easy clearance

B. Shell and tube, high efficient

C. Brazed plate heat exchanger type( BPHE)

3). High efficient V type condenser: Screw copper tube covered aluminum fins

4). Expansion valve: Emerson

5) .Iron and stainless steel pump for different option

6). Buffer tank installed inside chiller optional

7). Inbuilt iron or stainless steel circulation water pump

8). Muti- protection devices: -Compressor inner protection,Over current protection,High/low pressure protection,Over temperature protection ,Flow switch,Phase sequence/phase missing protection,Low coolant level protection,Anti freezing protection ,Exhaust overheat protection.




Parameter


For scroll compressor brand, MGREENBELT using Copeland from the USA, Danfoss from France and Panasonic from Japan. All scroll compressors featuring excellent cooling capacity with compressor inner protection and energy saving.

For standard air cooled chiller evaporator, MGREENBELT using 304# stainless steel water tank with a coil, but stainless steel plate heat exchanger and closed loop shell & tube heat exchanger are also available.

It is high efficiency and durable air cooled type condenser using the finned copper tube with aluminum and big air volume cooling fan.

MGREENBELT is professional in air-cooled chiller manufacturing.

MGREENBELT has exported air-cooled chillers to the Philippines,India, Australia, New Zealand, Malaysia, Singapore, Indonesia, Chile, Mexico, Costa Rica, Argentina, Colombia, South Africa, Egypt Saudi Arabia, Kuwait,Spain, USA etc.

If you are looking for a high-quality air-cooled chiller manufacturer, please contact MGREENBELT sales for the best price quotation.

Model

MG-10C(D)

Power Supply

3 Phase-380V-50Hz

Outlet Temperature

+5deg C ~+35 deg C can be control.

Cooling Capacity

Kw

28.5 @ +5 deg C outlet

KW

22.8 @ 0 deg C outlet

Refrigerant

Type

R22

Control type

Thermostatic expansion valve

Compressor

Type

Hermetic scroll

Quantity

2

Power(kw)

4.54*2

Evaporator

Type

Tank with coil Or Shell and tube

Chilled water flow(m3/h)

4.89

Tank volume

200

Inlet/outlet pipe dia.(mm)

DN32

Condenser

Type

High efficiency aluminum foll finned type

Cooling air flow(m3/h)

10000

Power(KW)

0.52*2

Dimension

L*W*H(mm)

1560*850*1500

N.G

Kg

450

Protection system

High/Low Pressure protection, Phase-sequencing Protection, Overload Protection, Overheat Protection, Water flow protection, Anti-frozen protection.

Specification list

Cooling capacity : 5.7kw~83.6kw / 1.6 ton ~ 23.8 tons

Horse power : 5hp~50hp

Outlet temperature : -10C ~ +30C, can be adjusted on the chiller control panel

Electric power supply available : 3PH-208V/220V/380V/415V/460V-50Hz/60Hz


Details

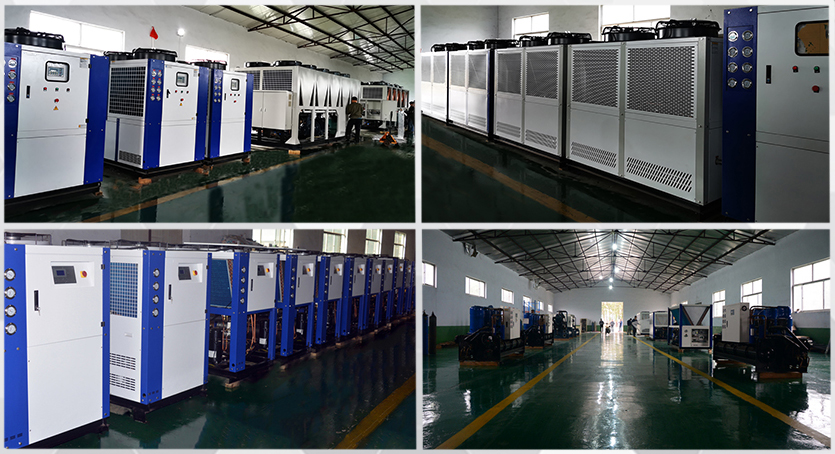

Mgreenbelt Chiller production:

1)Chilled outlet water temperature: -35℃ to +35℃

2)Cooling capacity: 2.85kw~1750kw(0.8 ton ~ 500 Tons)

3)Cooling way: Air cooled chiller and water cooled chiller

4)Compressor type:Screw type,Scroll type

5)Power supply:1/3PH-200V/220V/380V/415V/460V-50HZ/60HZ

6)Refrigerant available R22/R407c/R410a/R134a

Structural



About Us

 Shandong Mgreenbelt Machinery Co., Ltd. was founded in 2010, mainly engaged in the R&D and manufacturing of industrial chillers, refrigeration units and other refrigeration equipment. With more than ten years of innovative development, we has successively passed the inspection and testing of ISO9001 quality system and CE certification, accept BV, SGS and other third-party certification agencies inspection. It has gradually grown into a manufacturer dedicated to one-stop refrigeration solutions, providing the matching complete chilling system for our clients.

"Professionalism creates quality, technology creates value." Mgreenbelt looks forward to kindly cooperating with you.
