Single Compressor Air Cooled Chiller

Characteristic


  • Outlet water temperature control from 7C° to 35C°
  • Chiller Power Supply Option: 3phase-220v/380v/415v/460v-50hz/60hz
  • Chiller Cooling Capacity: 20 ton ~ 150 tons
  • Semi-hermetic screw type compressor
  • Air-cooled type condenser
  • Closed loop shell and tube evaporator
  • No need to install a cooling tower



24/7 Online Support

86-17686681005

Description

MG-CS series air cooled screw chiller widely used in plastic injection, extrusion, plating, mold,hydraulic chemical leather, printing. profiles of oxidation, reaction kettle, chemical fiber, vacuum coating.

paper making. textile, central air conditioning refrigeration and various aspects of water centralized warter supply, especially suitable for the inconvenience for water and the water pipe ground.

1.The Industrial Chiller is mainly used to provide cooling water for high-end industrial equipment, at the same time, also widely used in mechanical processing and manufacturing, plastics and rubber, electrical and electronic, electroplating, chemical medicine, laser, ultrasonic cleaning, printing and other industrial production.

2. According to the different way of heat dissipation,it is named as Water Cooling Type and Air Cooling Type;According to the different structure of compressor, scroll Type,Screw Type, According to the different outlet temperature, it is named as High-temperature Chiller, Middle-temperature Chiller, Lower-temperature Chiller, Ultra-low Temperature Chiller; According to the different overall structure of condensing unit and evaporator unit, it is named as Integrated Type and Separated Type, and so on.

3. All of our cold water equipment have already passed the European CE certification.

4.The device is equipped with European or Japanese Brand compressor, high efficiency shell & tube type condenser, stainless steel water tanks, microcomputer control, high precision temperature control system, over current and over voltage protection system, and some other component and function, super cooling, high efficiency, low noise, simple operation. Also there are single model, double model and quadruple model combination for selecting freely.

NOTE

1.Normal condtions Chied water inlet temp is12. outlet temp is7 , Ambient temp 35;

2.Temperature condtion:Chilerd water range s 7-30 ℃,This series of unit reques the chent to use the quid with the freezing point below the required temperature as the refrigerdant;

3.Input power:3PH+380V-50HZ ,Allowable buctuate votge:±10% Allowabe voltage difference in phase±2%;

4.Aactual head lift is pump head lift minus the machine internal head loss(1mH20=9.8kPa);

5.the above parameters are besed are Refrigerant R22, for other parameters of Refrigerant R134A,R407C ect.refrigerants, plcontact us;

6.Due to technology updating, size ¶meters listed data may change; The above datas are for reference only, please feel free to contact us for the latest data.



Parameter
Air Cooled Screw Chiller Normally Temperature Series( Single System)
Model MG-80CS MG-100CS MG-150CS MG-170CS MG-250CS MG-300CS MG-450CS MG-530CS

Cooling Capacity
USRT 22.2 31.0 40.4 46.9 76.8 93.8 127.9 150.7
Kcal/h 67080 93740 122120 141900 232200 283800 387000 455800
KW 78 109 142 165 270 330 450 530
Power 3PH-380V-50Hz

Refrigerant
Type R22/R407C
Control Thermostatic expansion valve

Comperssor
Type semi-closed screw type
kw Power 29 38 48 55 86 106 142 165
Start Y-
Capacity 25%-50%-75%-100%

Evaporator
Type High efficiency copper tube shell and tube type
m³/h Flow 13 19 24 28 46 57 77 91

Inlet/outlet
DN65 DN65 DN80 DN80 DN80 DN80 DN100 DN100

Condenser
Type High efficiency hydrophilic aluminum foll finned type
m³/h Flow 27000 40000 50000 60000 100000 120000 150000 180000
Protection System Compressor overheat protection, high/low pressure protection,phase missing/sequence protection, flow rate protection, anti-frozen protection.

Dimension
L(mm) 2350 3200 3200 3300 4400 3850 4750 5850
W(mm) 1450 1450 1450 2300 2300 2200 2200 2200
H(mm) 2150 2150 2150 2400 2400 2350 2450 2450
Wight kg 1800 1900 2300 2480 3800 3300 4000 5000

The Feature:

The main international advanced semi-closed screw compressor in which electric motor and compressor are organically integrated to ensure no leakage of the shaft sealing;

*Cooling capacity control available at four steps(100%-75%-50%-25%),three steps(100%-66%-33%)or no steps control system;

*Evaporator built with high efficiency shell and tube type heat changer.Condenser built with seamless copper tubes mechanically expanded into fins;

*External rotor type axial fans;

*High efficiency, low noise and vibration, easy to install;

*Controlled by microcomputer way;


Details

1.The Industrial Chiller is mainly used to provide cooling water for high-end industrial equipment, at the same time, also widely used in mechanical processing and manufacturing, plastics and rubber, electrical and electronic, electroplating, chemical medicine, laser, ultrasonic cleaning, printing and other industrial production.

2. According to the different way of heat dissipation,it is named as Water Cooling Type and Air Cooling Type;According to the different structure of compressor, scroll Type,Screw Type, According to the different outlet temperature, it is named as High-temperature Chiller, Middle-temperature Chiller, Lower-temperature Chiller, Ultra-low Temperature Chiller; According to the different overall structure of condensing unit and evaporator unit, it is named as Integrated Type and Separated Type, and so on.

3. All of our cold water equipment have already passed the European CE certification.

4.The device is equipped with European or Japanese Brand compressor, high efficiency shell & tube type condenser, stainless steel water tanks, microcomputer control, high precision temperature control system, over current and over voltage protection system, and some other component and function, super cooling, high efficiency, low noise, simple operation. Also there are single model, double model and quadruple model combination for selecting freely.



Based on the required chillers cooling capacity or refrigeration capacity, we have one screw compressor chiller and dual compressors chiller for your optional.

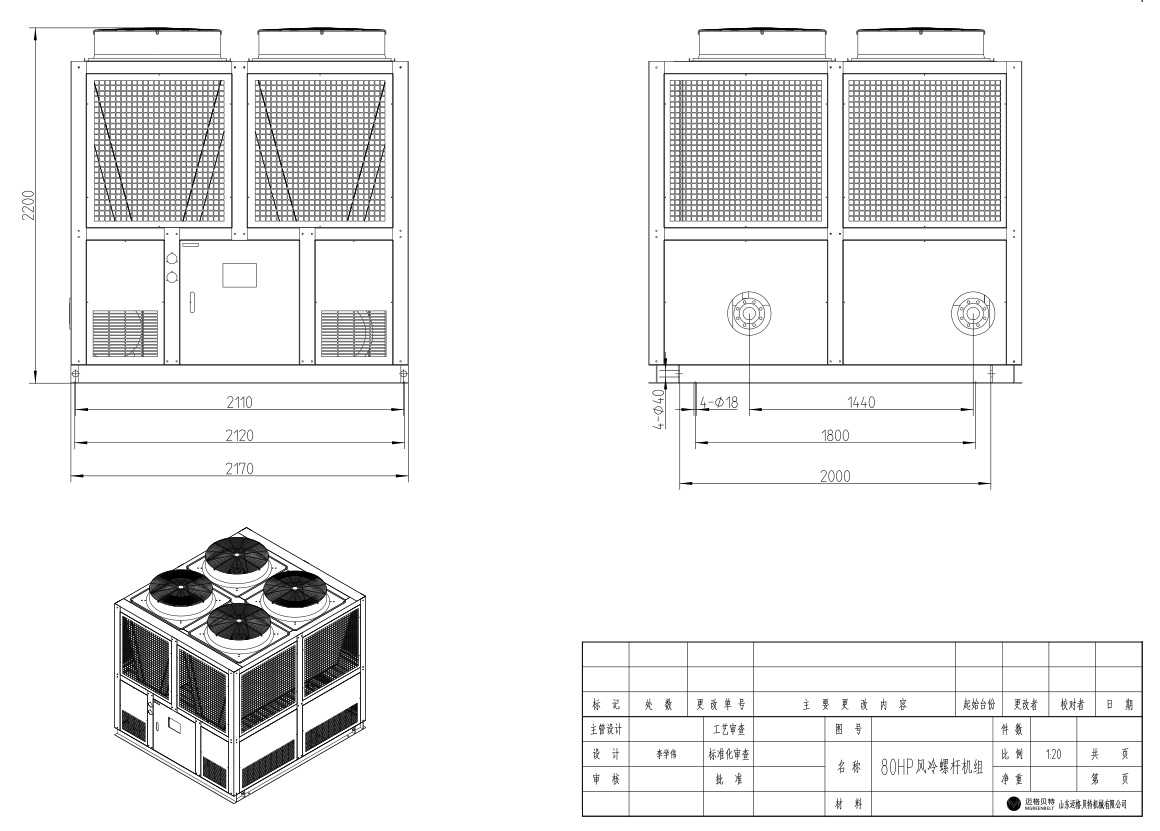

Structural



ABOUT US

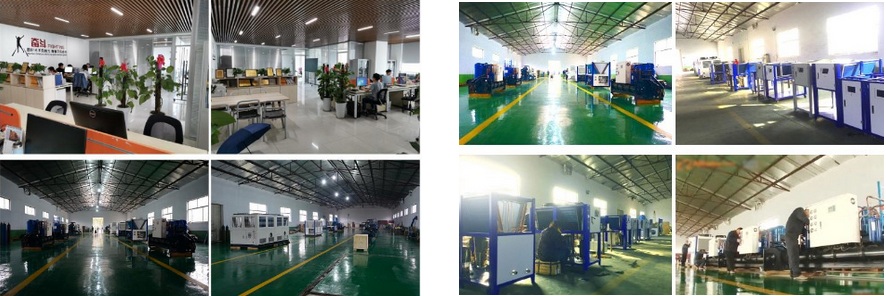

Shandong Mgreenbelt Machinery Co., Ltd. was founded in 2010, mainly engaged in the R&D and manufacturing of industrial chillers, refrigeration units and other refrigeration equipment. With more than ten years of innovative development, we has successively passed the inspection and testing of ISO9001 quality system and CE certification, accept BV, SGS and other third-party certification agencies inspection. It has gradually grown into a manufacturer dedicated to one-stop refrigeration solutions, providing the matching complete chilling system for our clients.


Industrial chillers are exported to more than 100 countries and regions around the world, have market layouts along "the Belt and Road". We provide stable, efficient, intelligent and environmentally friendly solutions for industries such as food, beverages, plastics, chemicals, electroplating, medical, electronics, concrete, vacuum pumps, power generation equipment and ultrasonic cleaning.


"Professionalism creates quality, technology creates value." Mgreenbelt looks forward to kindly cooperating with you.
