100 Ton Air Cooled Screw Chiller

Characteristic

1. Outlet water temperature 7C° to 35C°

2. Semi-hermetic screw type compressor
3. r-cooled type condenser
4. Closed loop shell and tube evaporator
5. No need to install a cooling tower

24/7 Online Support

86-17686681005

Description

Your Premier Air Cooled Screw Chiller Manufacturer

As a leading air cooled screw chiller supplier,MGREENBELT provides a complete range of air-cooled screw chiller,  with cooling capacity from 20Ton to 150Ton/80KW to 530KW and the chiller temperature control range is +30℃ to -30℃.
Besides the standard air-cooled screw chiller control temperature of 7℃ to 25℃, MGREENBELT also has air-cooled glycol screw chiller control temperature below zero from 0℃ to -30℃.

Each air cooled screw chiller designed from MGREENBELT has the following features:
1. Using world famous brand semi-hermetic screw compressor- Bitzer from Germany and Handbell from Taiwan.
2. Each screw compressor with 4 steps of energy control 25%-50%-75%-100% to make sure the whole screw chiller is stable and guarantee high refrigeration performance. There are also 2 compressors for optional depends on the required refrigeration capacity.
3.Highly efficient closed loop shell and tube type heat exchanger as the evaporator, and using air cooled type condenser-Copper tube sleeve aluminum fin with big volume air cooling fan.
4. Integrated PLC control system with human-computer interface and big LED touch screen panel for easy operation and troubleshooting.
5.World famous refrigeration spare parts like Danfoss brand thermal expansion valve, Alco dryer filter, Schneider electrical contactor, and overload relay will make sure the whole air cooled screw chiller works under normal conditions.
The above original quality refrigeration spare parts will ensure each air cooled screw chiller at a steady running condition.

Hot industry application of air cooled chiller

Air cooled screw chillers are also widely used in plastic processing and plastic machinery including: plastic injection molding, plastic extruders and extrusion line, blowing molding machine.

The function using air cooled screw chiller is to provide the cooling water flow rate for cool the plastic mold temperature down to make sure the product quality and production efficiency.

MGREENBELT  has exported various air cooled screw chillers cooling capacity from 40Ton,50Ton,80Ton and 150Ton to the USA, Canada, Philippines, Australia, New Zealand, Malaysia, Singapore, Indonesia, Chile, Mexico, Costa Rica,Argentina, Colombia, South Africa, Kuwait, Egypt, Saudi Arabia etc.
As a leader of air-cooled screw chiller supplier, MGREENBELT  can provide not only standard configuration chillers but some other customized products.
Please contact MGREENBELT  sales to get the best water cooling solution of your air-cooled screw chiller.

Parameter



Model

MG-300C


Cooling Capacity

USRT

93.8

Kcal/h

283800

KW

330

Power Supply

3PH-380V-50Hz


Refrigerant

Type

R407c

Control

Thermostatic expansion valve


Comperssor

Type

Semi-Hermetic screw type

Power(kw)

106

Start

Y-△

Capacity

25%-50%-75%-100%


Evaporator

Type

High efficiency copper tube shell and tube type

Flow(m³/h )

57

Dia Inlet/outlet

DN80


Condenser

Type

High efficiency hydrophilic aluminum foll finned type

Flow(m³/h )

120000

Protection System

Compressor overheat protection, high/low pressure protection,phase missing/sequence protection, flow rate protection, anti-frozen protection.


Dimension

L(mm)

3850

W(mm)

2200

H(mm)

2350

Wight

kg

3300


The Feature:

The main international advanced semi-closed screw compressor in which electric motor and compressor are organically integrated to ensure no leakage of the shaft sealing;

*Cooling capacity control available at four steps(100%-75%-50%-25%),three steps(100%-66%-33%)or no steps control system;

*Evaporator built with high efficency shell and tube type heat changer.Condenser built with seamless copper tubes mechanically expanded into aluminums fins;

*External rotor type axial fans;

*High efficiency, low noise and vibration, easy to install;

*Controlled by microcomputer way;


Details

Your Professional Air Cooled Chiller Supplier In China

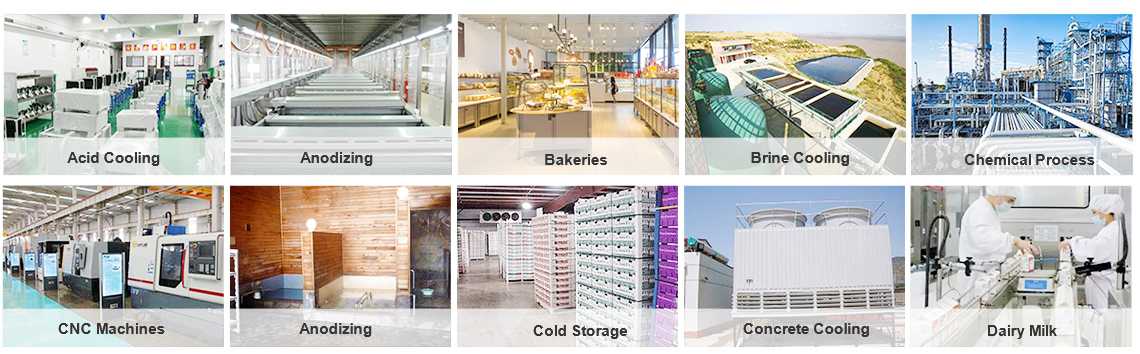

1.The Industrial Chiller is mainly used to provide cooling water for high-end industrial equipment, at the same time, also widely used in mechanical processing and manufacturing, plastics and rubber, electrical and electronic, electroplating, chemical medicine, laser, ultrasonic cleaning, printing and other industrial production.

2. According to the different way of heat dissipation,it is named as Water Cooling Type and Air Cooling Type;According to the different structure of compressor, scroll Type,Screw Type, According to the different outlet temperature, it is named as High-temperature Chiller, Middle-temperature Chiller, Lower-temperature Chiller, Ultra-low Temperature Chiller; According to the different overall structure of condensing unit and evaporator unit, it is named as Integrated Type and Separated Type, and so on.

3. All of our cold water equipment have already passed the European CE certification.

4.The device is equipped with European or Japanese Brand compressor, high efficiency shell & tube type condenser, stainless steel water tanks, microcomputer control, high precision temperature control system, over current and over voltage protection system, and some other component and function, super cooling, high efficiency, low noise, simple operation. Also there are single model, double model and quadruple model combination for selecting freely.

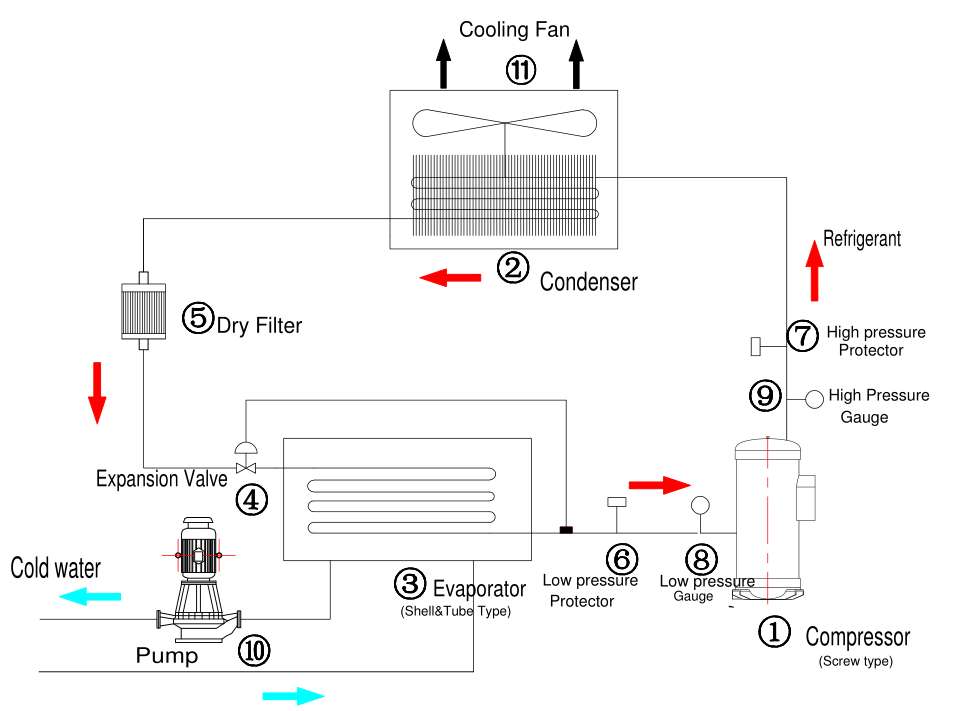

Structural
